Grafana集成ldap认证

在设置之前，必须弄懂ldap里面的几个名词
cn、ou、dc、dn(自行百度)

dn包含前三个，下面就是一个dn
(uid=mcc)cn=student,ou=chuanda,dc=chengdu,dc=sichuan,dc=china

作用等于 china/sichuan/chengdu/chuanda/mcc

就用ldap登录后的返回好了，看官一看便知！

[
{
    DN: "uid=ming.xiao,ou=Users,dc=test,dc=cn",
    FirstName: "xiao",
    LastName: "ming",
    Username: "ming.xiao@qq.com",
    Email: "ming.xiao@qq.com",
    MemberOf: {
    "cn=confluence-users,ou=Groups,dc=test,dc=cn",
    "cn=jira-software-users,ou=Groups,dc=test,dc=cn"
    }
}
]

1.启动一个grafana实例

docker run -i -p 13000:3000 grafana/grafana -d

2.设置ldap配置文件
进入docker,编辑ldap配置文件

apt-get update
apt-get install vim
vim /etc/grafana/ldap.toml

1.server.host、port修改为自己的ldap的地址

host = "ldap.mcc.cn"
port = 389
use_ssl = true
start_tls = true //这个之前false 会报错LDAP Result Code 200 "": EOF
ssl_skip_verify = true
#root_ca_cert = /path/to/certificate.crt //证书没设置

2.设置读取的账户（需要可读权限）
注意这个

# Search user bind dn
bind_dn = "uid=readonly,ou=Users,dc=test,dc=cn" //这个找ldap负责人就可以拿到
# Search user bind password
bind_password = "test111"

3.设置grafana登录账户 = ldap mail
search_filter这个非常重要，决定了grafana的账号是ldap的uid还是mail还是其他

//search_filter = "(uid=%s)" //uid登录 ming.xiao
search_filter = "(mail=%s)" //邮箱登录 ming.xiao@qq.com

search_base_dns = ["ou=Users,dc=test,dc=cn"]

4.设置[servers.attributes]
貌似这个没什么影响，对登录来说…

[servers.attributes]
name = "givenName"
surname = "sn"
username = "mail" //这个
member_of = "memberOf"
email =  "mail"   //这个

5.设置ldap的组和grafana的org对应关系
注意ou=Groups,而登录用户的ou=Users

# 第一个组
[[servers.group_mappings]]
group_dn = "cn=confluence-users,ou=Groups,dc=test,dc=cn"
org_role = "Editor"
org_id = 3

# 第二个组
[[servers.group_mappings]]
group_dn = "cn=jira-software-users,ou=Groups,dc=test,dc=cn"
org_role = "Editor"
org_id = 4

[[servers.group_mappings]]
# 所有人都是该org的viewer
group_dn = "*"
org_role = "Viewer"
org_id = 2

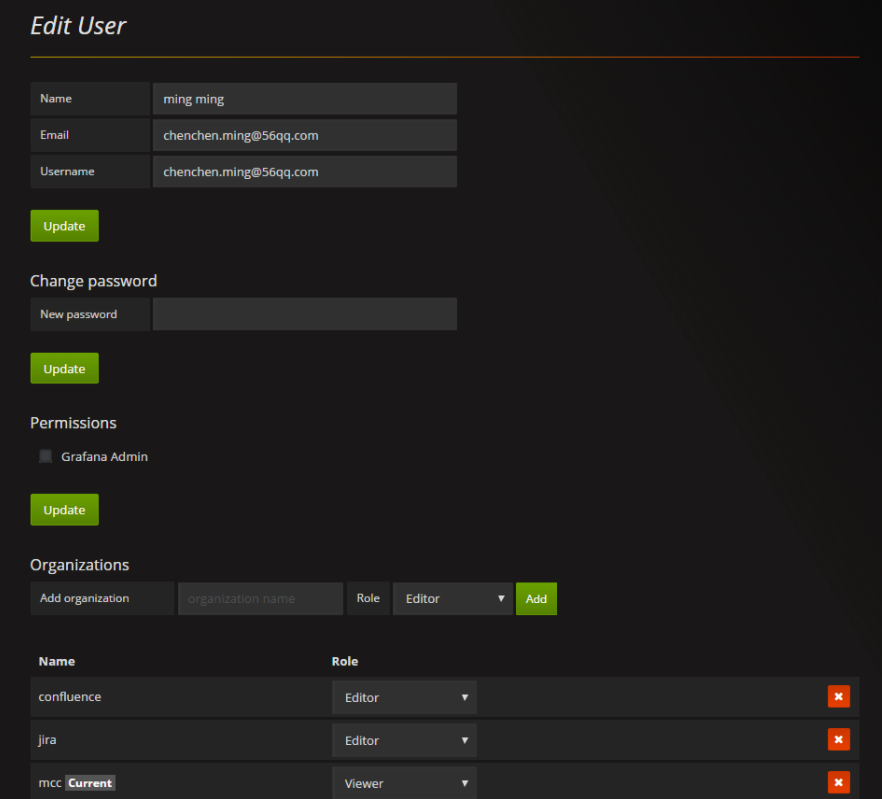

ps：用户匹配上多个组则可以拥有多个组的多个权限

3.启用ldap认证
1.全局配置文件目录

whereis grafana
grafana: /etc/grafana /usr/share/grafana
cd /usr/share/grafana/conf/
vi defaults.ini

2.修改配置

[auth.ldap]
enabled = true

完了之后重启grafana

4.创建grafana org
使用admin admin登录，创建org
一定要注意orgId和上面设置的mapping的org_id对应！

参考配置

[auth.ldap]
enabled = true
config_file = /etc/grafana/ldap.toml
allow_sign_up = true

[[servers]]
host = "10.10.10.10"
port = 389
use_ssl = false
start_tls = false
ssl_skip_verify = false
bind_dn = "cn=ldapadmin,cn=Users,dc=hi,dc=local"
bind_password = 'xxxxxx'
search_filter = "(cn=%s)"
search_base_dns = ["dc=hi,dc=local"]
[servers.attributes]
name = "givenName"
surname = "sn"
username = "cn"
member_of = "memberOf"
email =  "email"
[[servers.group_mappings]]
group_dn = "cn=admins,dc=grafana,dc=org"
org_role = "Admin"
[[servers.group_mappings]]
group_dn = "cn=users,dc=grafana,dc=org"
org_role = "Editor"
[[servers.group_mappings]]
group_dn = "*"
org_role = "Viewer"
