竹影清风阁Traefik 简介
Traefik 是一款开源的边缘路由器，它可以让发布服务变得轻松有趣。它代表您的系统接收请求，并找出负责处理这些请求的组件。与众不同之处在于，除了它的许多特性之外，它还可以自动为您的服务发现正确的配置。当 Traefik 检查您的基础设施时，它会发现相关信息，并发现哪个服务为哪个请求提供服务。
Traefik 与每个主要的集群技术都是原生兼容的，比如 Kubernetes、Docker、Docker Swarm、AWS、Mesos、Marathon 等等;并且可以同时处理多个。(它甚至适用于运行在裸机上的遗留软件。)
使用 Traefik，不需要维护和同步单独的配置文件:所有事情都是实时自动发生的(没有重启，没有连接中断)。使用 Traefik，只需要花费时间开发和部署新功能到您的系统，而不是配置和维护其工作状态。
当部署完 Traefik 后还需要创建外部访问 Kubernetes 内部应用的路由规则，Traefik 目前支持三种方式创建路由规则方式：
一种是创建 Traefik 自定义 Kubernetes CRD 资源
另一种是创建 Kubernetes Ingress 资源
还有就是 v2.4 版本对 Kubernetes 扩展 API Kubernetes Gateway API 适配的一种方式，创建 GatewayClass、Gateway 与 HTTPRoute 资源。
我个人比较喜欢使用第一种，第三种方式目前还处理实验阶段
所以在我的环境中我只部署支持了CDR方式
创建 CRD 资源
# All resources definition must be declared
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: ingressroutes.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: IngressRoute
listKind: IngressRouteList
plural: ingressroutes
singular: ingressroute
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: IngressRoute is an Ingress CRD specification.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IngressRouteSpec is a specification for a IngressRouteSpec
resource.
properties:
entryPoints:
items:
type: string
type: array
routes:
items:
description: Route contains the set of routes.
properties:
kind:
enum:
- Rule
type: string
match:
type: string
middlewares:
items:
description: MiddlewareRef is a ref to the Middleware resources.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
type: array
priority:
type: integer
services:
items:
description: Service defines an upstream to proxy traffic.
properties:
kind:
enum:
- Service
- TraefikService
type: string
name:
description: Name is a reference to a Kubernetes Service
object (for a load-balancer of servers), or to a TraefikService
object (service load-balancer, mirroring, etc). The
differentiation between the two is specified in the
Kind field.
type: string
namespace:
type: string
passHostHeader:
type: boolean
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
responseForwarding:
description: ResponseForwarding holds configuration for
the forward of the response.
properties:
flushInterval:
type: string
type: object
scheme:
type: string
serversTransport:
type: string
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration
based on cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
strategy:
type: string
weight:
description: Weight should only be specified when Name
references a TraefikService object (and to be precise,
one that embeds a Weighted Round Robin).
type: integer
required:
- name
type: object
type: array
required:
- kind
- match
type: object
type: array
tls:
description: "TLS contains the TLS certificates configuration of the
routes. To enable Let's Encrypt, use an empty TLS struct, e.g. in
YAML: \n \t tls: {} # inline format \n \t tls: \t secretName:
# block format"
properties:
certResolver:
type: string
domains:
items:
description: Domain holds a domain name with SANs.
properties:
main:
type: string
sans:
items:
type: string
type: array
type: object
type: array
options:
description: Options is a reference to a TLSOption, that specifies
the parameters of the TLS connection.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
secretName:
description: SecretName is the name of the referenced Kubernetes
Secret to specify the certificate details.
type: string
store:
description: Store is a reference to a TLSStore, that specifies
the parameters of the TLS store.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
type: object
required:
- routes
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: ingressroutetcps.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: IngressRouteTCP
listKind: IngressRouteTCPList
plural: ingressroutetcps
singular: ingressroutetcp
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: IngressRouteTCP is an Ingress CRD specification.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IngressRouteTCPSpec is a specification for a IngressRouteTCPSpec
resource.
properties:
entryPoints:
items:
type: string
type: array
routes:
items:
description: RouteTCP contains the set of routes.
properties:
match:
type: string
middlewares:
description: Middlewares contains references to MiddlewareTCP
resources.
items:
description: ObjectReference is a generic reference to a Traefik
resource.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
type: array
services:
items:
description: ServiceTCP defines an upstream to proxy traffic.
properties:
name:
type: string
namespace:
type: string
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
proxyProtocol:
description: ProxyProtocol holds the ProxyProtocol configuration.
properties:
version:
type: integer
type: object
terminationDelay:
type: integer
weight:
type: integer
required:
- name
- port
type: object
type: array
required:
- match
type: object
type: array
tls:
description: "TLSTCP contains the TLS certificates configuration of
the routes. To enable Let's Encrypt, use an empty TLS struct, e.g.
in YAML: \n \t tls: {} # inline format \n \t tls: \t secretName:
# block format"
properties:
certResolver:
type: string
domains:
items:
description: Domain holds a domain name with SANs.
properties:
main:
type: string
sans:
items:
type: string
type: array
type: object
type: array
options:
description: Options is a reference to a TLSOption, that specifies
the parameters of the TLS connection.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
passthrough:
type: boolean
secretName:
description: SecretName is the name of the referenced Kubernetes
Secret to specify the certificate details.
type: string
store:
description: Store is a reference to a TLSStore, that specifies
the parameters of the TLS store.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
type: object
required:
- routes
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: ingressrouteudps.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: IngressRouteUDP
listKind: IngressRouteUDPList
plural: ingressrouteudps
singular: ingressrouteudp
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: IngressRouteUDP is an Ingress CRD specification.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IngressRouteUDPSpec is a specification for a IngressRouteUDPSpec
resource.
properties:
entryPoints:
items:
type: string
type: array
routes:
items:
description: RouteUDP contains the set of routes.
properties:
services:
items:
description: ServiceUDP defines an upstream to proxy traffic.
properties:
name:
type: string
namespace:
type: string
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
weight:
type: integer
required:
- name
- port
type: object
type: array
type: object
type: array
required:
- routes
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: middlewares.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: Middleware
listKind: MiddlewareList
plural: middlewares
singular: middleware
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: Middleware is a specification for a Middleware resource.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: MiddlewareSpec holds the Middleware configuration.
properties:
addPrefix:
description: AddPrefix holds the AddPrefix configuration.
properties:
prefix:
type: string
type: object
basicAuth:
description: BasicAuth holds the HTTP basic authentication configuration.
properties:
headerField:
type: string
realm:
type: string
removeHeader:
type: boolean
secret:
type: string
type: object
buffering:
description: Buffering holds the request/response buffering configuration.
properties:
maxRequestBodyBytes:
format: int64
type: integer
maxResponseBodyBytes:
format: int64
type: integer
memRequestBodyBytes:
format: int64
type: integer
memResponseBodyBytes:
format: int64
type: integer
retryExpression:
type: string
type: object
chain:
description: Chain holds a chain of middlewares.
properties:
middlewares:
items:
description: MiddlewareRef is a ref to the Middleware resources.
properties:
name:
type: string
namespace:
type: string
required:
- name
type: object
type: array
type: object
circuitBreaker:
description: CircuitBreaker holds the circuit breaker configuration.
properties:
expression:
type: string
type: object
compress:
description: Compress holds the compress configuration.
properties:
excludedContentTypes:
items:
type: string
type: array
type: object
contentType:
description: ContentType middleware - or rather its unique `autoDetect`
option - specifies whether to let the `Content-Type` header, if
it has not been set by the backend, be automatically set to a value
derived from the contents of the response. As a proxy, the default
behavior should be to leave the header alone, regardless of what
the backend did with it. However, the historic default was to always
auto-detect and set the header if it was nil, and it is going to
be kept that way in order to support users currently relying on
it. This middleware exists to enable the correct behavior until
at least the default one can be changed in a future version.
properties:
autoDetect:
type: boolean
type: object
digestAuth:
description: DigestAuth holds the Digest HTTP authentication configuration.
properties:
headerField:
type: string
realm:
type: string
removeHeader:
type: boolean
secret:
type: string
type: object
errors:
description: ErrorPage holds the custom error page configuration.
properties:
query:
type: string
service:
description: Service defines an upstream to proxy traffic.
properties:
kind:
enum:
- Service
- TraefikService
type: string
name:
description: Name is a reference to a Kubernetes Service object
(for a load-balancer of servers), or to a TraefikService
object (service load-balancer, mirroring, etc). The differentiation
between the two is specified in the Kind field.
type: string
namespace:
type: string
passHostHeader:
type: boolean
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
responseForwarding:
description: ResponseForwarding holds configuration for the
forward of the response.
properties:
flushInterval:
type: string
type: object
scheme:
type: string
serversTransport:
type: string
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration based
on cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
strategy:
type: string
weight:
description: Weight should only be specified when Name references
a TraefikService object (and to be precise, one that embeds
a Weighted Round Robin).
type: integer
required:
- name
type: object
status:
items:
type: string
type: array
type: object
forwardAuth:
description: ForwardAuth holds the http forward authentication configuration.
properties:
address:
type: string
authRequestHeaders:
items:
type: string
type: array
authResponseHeaders:
items:
type: string
type: array
authResponseHeadersRegex:
type: string
tls:
description: ClientTLS holds TLS specific configurations as client.
properties:
caOptional:
type: boolean
caSecret:
type: string
certSecret:
type: string
insecureSkipVerify:
type: boolean
type: object
trustForwardHeader:
type: boolean
type: object
headers:
description: Headers holds the custom header configuration.
properties:
accessControlAllowCredentials:
description: AccessControlAllowCredentials is only valid if true.
false is ignored.
type: boolean
accessControlAllowHeaders:
description: AccessControlAllowHeaders must be used in response
to a preflight request with Access-Control-Request-Headers set.
items:
type: string
type: array
accessControlAllowMethods:
description: AccessControlAllowMethods must be used in response
to a preflight request with Access-Control-Request-Method set.
items:
type: string
type: array
accessControlAllowOriginList:
description: AccessControlAllowOriginList is a list of allowable
origins. Can also be a wildcard origin "*".
items:
type: string
type: array
accessControlAllowOriginListRegex:
description: AccessControlAllowOriginListRegex is a list of allowable
origins written following the Regular Expression syntax (https://golang.org/pkg/regexp/).
items:
type: string
type: array
accessControlExposeHeaders:
description: AccessControlExposeHeaders sets valid headers for
the response.
items:
type: string
type: array
accessControlMaxAge:
description: AccessControlMaxAge sets the time that a preflight
request may be cached.
format: int64
type: integer
addVaryHeader:
description: AddVaryHeader controls if the Vary header is automatically
added/updated when the AccessControlAllowOriginList is set.
type: boolean
allowedHosts:
items:
type: string
type: array
browserXssFilter:
type: boolean
contentSecurityPolicy:
type: string
contentTypeNosniff:
type: boolean
customBrowserXSSValue:
type: string
customFrameOptionsValue:
type: string
customRequestHeaders:
additionalProperties:
type: string
type: object
customResponseHeaders:
additionalProperties:
type: string
type: object
featurePolicy:
description: 'Deprecated: use PermissionsPolicy instead.'
type: string
forceSTSHeader:
type: boolean
frameDeny:
type: boolean
hostsProxyHeaders:
items:
type: string
type: array
isDevelopment:
type: boolean
permissionsPolicy:
type: string
publicKey:
type: string
referrerPolicy:
type: string
sslForceHost:
description: 'Deprecated: use RedirectRegex instead.'
type: boolean
sslHost:
description: 'Deprecated: use RedirectRegex instead.'
type: string
sslProxyHeaders:
additionalProperties:
type: string
type: object
sslRedirect:
description: 'Deprecated: use EntryPoint redirection or RedirectScheme
instead.'
type: boolean
sslTemporaryRedirect:
description: 'Deprecated: use EntryPoint redirection or RedirectScheme
instead.'
type: boolean
stsIncludeSubdomains:
type: boolean
stsPreload:
type: boolean
stsSeconds:
format: int64
type: integer
type: object
inFlightReq:
description: InFlightReq limits the number of requests being processed
and served concurrently.
properties:
amount:
format: int64
type: integer
sourceCriterion:
description: SourceCriterion defines what criterion is used to
group requests as originating from a common source. If none
are set, the default is to use the request's remote address
field. All fields are mutually exclusive.
properties:
ipStrategy:
description: IPStrategy holds the ip strategy configuration.
properties:
depth:
type: integer
excludedIPs:
items:
type: string
type: array
type: object
requestHeaderName:
type: string
requestHost:
type: boolean
type: object
type: object
ipWhiteList:
description: IPWhiteList holds the ip white list configuration.
properties:
ipStrategy:
description: IPStrategy holds the ip strategy configuration.
properties:
depth:
type: integer
excludedIPs:
items:
type: string
type: array
type: object
sourceRange:
items:
type: string
type: array
type: object
passTLSClientCert:
description: PassTLSClientCert holds the TLS client cert headers configuration.
properties:
info:
description: TLSClientCertificateInfo holds the client TLS certificate
info configuration.
properties:
issuer:
description: TLSClientCertificateDNInfo holds the client TLS
certificate distinguished name info configuration. cf https://tools.ietf.org/html/rfc3739
properties:
commonName:
type: boolean
country:
type: boolean
domainComponent:
type: boolean
locality:
type: boolean
organization:
type: boolean
province:
type: boolean
serialNumber:
type: boolean
type: object
notAfter:
type: boolean
notBefore:
type: boolean
sans:
type: boolean
serialNumber:
type: boolean
subject:
description: TLSClientCertificateDNInfo holds the client TLS
certificate distinguished name info configuration. cf https://tools.ietf.org/html/rfc3739
properties:
commonName:
type: boolean
country:
type: boolean
domainComponent:
type: boolean
locality:
type: boolean
organization:
type: boolean
province:
type: boolean
serialNumber:
type: boolean
type: object
type: object
pem:
type: boolean
type: object
plugin:
additionalProperties:
x-kubernetes-preserve-unknown-fields: true
type: object
rateLimit:
description: RateLimit holds the rate limiting configuration for a
given router.
properties:
average:
format: int64
type: integer
burst:
format: int64
type: integer
period:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
sourceCriterion:
description: SourceCriterion defines what criterion is used to
group requests as originating from a common source. If none
are set, the default is to use the request's remote address
field. All fields are mutually exclusive.
properties:
ipStrategy:
description: IPStrategy holds the ip strategy configuration.
properties:
depth:
type: integer
excludedIPs:
items:
type: string
type: array
type: object
requestHeaderName:
type: string
requestHost:
type: boolean
type: object
type: object
redirectRegex:
description: RedirectRegex holds the redirection configuration.
properties:
permanent:
type: boolean
regex:
type: string
replacement:
type: string
type: object
redirectScheme:
description: RedirectScheme holds the scheme redirection configuration.
properties:
permanent:
type: boolean
port:
type: string
scheme:
type: string
type: object
replacePath:
description: ReplacePath holds the ReplacePath configuration.
properties:
path:
type: string
type: object
replacePathRegex:
description: ReplacePathRegex holds the ReplacePathRegex configuration.
properties:
regex:
type: string
replacement:
type: string
type: object
retry:
description: Retry holds the retry configuration.
properties:
attempts:
type: integer
initialInterval:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
type: object
stripPrefix:
description: StripPrefix holds the StripPrefix configuration.
properties:
forceSlash:
type: boolean
prefixes:
items:
type: string
type: array
type: object
stripPrefixRegex:
description: StripPrefixRegex holds the StripPrefixRegex configuration.
properties:
regex:
items:
type: string
type: array
type: object
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: middlewaretcps.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: MiddlewareTCP
listKind: MiddlewareTCPList
plural: middlewaretcps
singular: middlewaretcp
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: MiddlewareTCP is a specification for a MiddlewareTCP resource.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: MiddlewareTCPSpec holds the MiddlewareTCP configuration.
properties:
ipWhiteList:
description: TCPIPWhiteList holds the TCP ip white list configuration.
properties:
sourceRange:
items:
type: string
type: array
type: object
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: serverstransports.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: ServersTransport
listKind: ServersTransportList
plural: serverstransports
singular: serverstransport
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: ServersTransport is a specification for a ServersTransport resource.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: ServersTransportSpec options to configure communication between
Traefik and the servers.
properties:
certificatesSecrets:
description: Certificates for mTLS.
items:
type: string
type: array
disableHTTP2:
description: Disable HTTP/2 for connections with backend servers.
type: boolean
forwardingTimeouts:
description: Timeouts for requests forwarded to the backend servers.
properties:
dialTimeout:
anyOf:
- type: integer
- type: string
description: The amount of time to wait until a connection to
a backend server can be established. If zero, no timeout exists.
x-kubernetes-int-or-string: true
idleConnTimeout:
anyOf:
- type: integer
- type: string
description: The maximum period for which an idle HTTP keep-alive
connection will remain open before closing itself.
x-kubernetes-int-or-string: true
responseHeaderTimeout:
anyOf:
- type: integer
- type: string
description: The amount of time to wait for a server's response
headers after fully writing the request (including its body,
if any). If zero, no timeout exists.
x-kubernetes-int-or-string: true
type: object
insecureSkipVerify:
description: Disable SSL certificate verification.
type: boolean
maxIdleConnsPerHost:
description: If non-zero, controls the maximum idle (keep-alive) to
keep per-host. If zero, DefaultMaxIdleConnsPerHost is used.
type: integer
peerCertURI:
description: URI used to match against SAN URI during the peer certificate
verification.
type: string
rootCAsSecrets:
description: Add cert file for self-signed certificate.
items:
type: string
type: array
serverName:
description: ServerName used to contact the server.
type: string
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: tlsoptions.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: TLSOption
listKind: TLSOptionList
plural: tlsoptions
singular: tlsoption
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: TLSOption is a specification for a TLSOption resource.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: TLSOptionSpec configures TLS for an entry point.
properties:
alpnProtocols:
items:
type: string
type: array
cipherSuites:
items:
type: string
type: array
clientAuth:
description: ClientAuth defines the parameters of the client authentication
part of the TLS connection, if any.
properties:
clientAuthType:
description: ClientAuthType defines the client authentication
type to apply.
enum:
- NoClientCert
- RequestClientCert
- RequireAnyClientCert
- VerifyClientCertIfGiven
- RequireAndVerifyClientCert
type: string
secretNames:
description: SecretName is the name of the referenced Kubernetes
Secret to specify the certificate details.
items:
type: string
type: array
type: object
curvePreferences:
items:
type: string
type: array
maxVersion:
type: string
minVersion:
type: string
preferServerCipherSuites:
type: boolean
sniStrict:
type: boolean
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: tlsstores.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: TLSStore
listKind: TLSStoreList
plural: tlsstores
singular: tlsstore
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: TLSStore is a specification for a TLSStore resource.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: TLSStoreSpec configures a TLSStore resource.
properties:
defaultCertificate:
description: DefaultCertificate holds a secret name for the TLSOption
resource.
properties:
secretName:
description: SecretName is the name of the referenced Kubernetes
Secret to specify the certificate details.
type: string
required:
- secretName
type: object
required:
- defaultCertificate
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
annotations:
controller-gen.kubebuilder.io/version: v0.6.2
creationTimestamp: null
name: traefikservices.traefik.containo.us
spec:
group: traefik.containo.us
names:
kind: TraefikService
listKind: TraefikServiceList
plural: traefikservices
singular: traefikservice
scope: Namespaced
versions:
- name: v1alpha1
schema:
openAPIV3Schema:
description: TraefikService is the specification for a service (that an IngressRoute
refers to) that is usually not a terminal service (i.e. not a pod of servers),
as opposed to a Kubernetes Service. That is to say, it usually refers to
other (children) services, which themselves can be TraefikServices or Services.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: ServiceSpec defines whether a TraefikService is a load-balancer
of services or a mirroring service.
properties:
mirroring:
description: Mirroring defines a mirroring service, which is composed
of a main load-balancer, and a list of mirrors.
properties:
kind:
enum:
- Service
- TraefikService
type: string
maxBodySize:
format: int64
type: integer
mirrors:
items:
description: MirrorService defines one of the mirrors of a Mirroring
service.
properties:
kind:
enum:
- Service
- TraefikService
type: string
name:
description: Name is a reference to a Kubernetes Service
object (for a load-balancer of servers), or to a TraefikService
object (service load-balancer, mirroring, etc). The differentiation
between the two is specified in the Kind field.
type: string
namespace:
type: string
passHostHeader:
type: boolean
percent:
type: integer
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
responseForwarding:
description: ResponseForwarding holds configuration for
the forward of the response.
properties:
flushInterval:
type: string
type: object
scheme:
type: string
serversTransport:
type: string
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration based
on cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
strategy:
type: string
weight:
description: Weight should only be specified when Name references
a TraefikService object (and to be precise, one that embeds
a Weighted Round Robin).
type: integer
required:
- name
type: object
type: array
name:
description: Name is a reference to a Kubernetes Service object
(for a load-balancer of servers), or to a TraefikService object
(service load-balancer, mirroring, etc). The differentiation
between the two is specified in the Kind field.
type: string
namespace:
type: string
passHostHeader:
type: boolean
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
responseForwarding:
description: ResponseForwarding holds configuration for the forward
of the response.
properties:
flushInterval:
type: string
type: object
scheme:
type: string
serversTransport:
type: string
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration based on
cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
strategy:
type: string
weight:
description: Weight should only be specified when Name references
a TraefikService object (and to be precise, one that embeds
a Weighted Round Robin).
type: integer
required:
- name
type: object
weighted:
description: WeightedRoundRobin defines a load-balancer of services.
properties:
services:
items:
description: Service defines an upstream to proxy traffic.
properties:
kind:
enum:
- Service
- TraefikService
type: string
name:
description: Name is a reference to a Kubernetes Service
object (for a load-balancer of servers), or to a TraefikService
object (service load-balancer, mirroring, etc). The differentiation
between the two is specified in the Kind field.
type: string
namespace:
type: string
passHostHeader:
type: boolean
port:
anyOf:
- type: integer
- type: string
x-kubernetes-int-or-string: true
responseForwarding:
description: ResponseForwarding holds configuration for
the forward of the response.
properties:
flushInterval:
type: string
type: object
scheme:
type: string
serversTransport:
type: string
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration based
on cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
strategy:
type: string
weight:
description: Weight should only be specified when Name references
a TraefikService object (and to be precise, one that embeds
a Weighted Round Robin).
type: integer
required:
- name
type: object
type: array
sticky:
description: Sticky holds the sticky configuration.
properties:
cookie:
description: Cookie holds the sticky configuration based on
cookie.
properties:
httpOnly:
type: boolean
name:
type: string
sameSite:
type: string
secure:
type: boolean
type: object
type: object
type: object
type: object
required:
- metadata
- spec
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
创建 RBAC 权限
Kubernetes 在 1.6 版本中引入了基于角色的访问控制（RBAC）策略，方便对 Kubernetes 资源和 API 进行细粒度控制。Traefik 需要一定的权限，所以，这里提前创建好 Traefik ServiceAccount 并分配一定的权限。
kind: ServiceAccount
apiVersion: v1
metadata:
name: traefik-ingress-controller
namespace: ingress-traefik
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: traefik-ingress-controller
rules:
- apiGroups:
- ""
resources:
- services
- endpoints
- secrets
verbs:
- get
- list
- watch
- apiGroups:
- extensions
- networking.k8s.io
resources:
- ingresses
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- extensions
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- traefik.containo.us
resources:
- middlewares
- middlewaretcps
- ingressroutes
- traefikservices
- ingressroutetcps
- ingressrouteudps
- tlsoptions
- tlsstores
- serverstransports
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: traefik-ingress-controller
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
name: traefik-ingress-controller
namespace: ingress-traefik创建 Traefik 配置文件
由于 Traefik 配置很多，通过 CLI 定义不是很方便，一般时候都会通过配置文件配置 Traefik 参数，然后存入 ConfigMap，将其挂入 Traefik 中。
创建 traefik-config.yaml 文件
kind: ConfigMap
apiVersion: v1
metadata:
name: traefik-config
namespace: ingress-traefik
data:
traefik.yaml: |-
ping: ""
serversTransport:
insecureSkipVerify: true
api:
insecure: true
dashboard: true
debug: false
metrics:
prometheus:
entrypoint: "metrics"
addEntryPointsLabels: true
addRoutersLabels: true
addServicesLabels: true
entryPoints:
web:
address: ":80"
websecure:
address: ":443"
metrics:
address: ":9100"
traefik:
address: ":9000"
providers:
kubernetesCRD:
allowCrossNamespace: true
allowExternalNameServices: true
kubernetesIngress: ""
#kubernetesGateway: ""
experimental:
kubernetesGateway: true
log:
filePath: ""
level: error
format: json
accessLog:
filePath: ""
format: json
bufferingSize: 0
filters:
#statusCodes: ["200"]
retryAttempts: true
minDuration: 20
fields:
defaultMode: keep
names:
ClientUsername: drop
headers:
defaultMode: keep
names:
User-Agent: redact
Authorization: drop
Content-Type: keep
#tracing:
# serviceName:
# zipkin:
# sameSpan: true
# id128Bit: true
# sampleRate: 0.1
# httpEndpoint: http://localhost:9411/api/v2/spans下面配置中可以通过配置 kubernetesCRD 与 kubernetesIngress 和 kubernetesGateway 三项参数，让 Traefik 支持 CRD、Ingress 与 kubernetesGateway 三种路由配置方式。
节点设置 Label 标签
由于是 Kubernetes DeamonSet 这种方式部署 Traefik，所以需要提前给节点设置 Label，这样当程序部署时会自动调度到设置 Label 的节点上。
格式：kubectl label nodes [节点名] [key=value]
kubectl label nodes k8s-node2 IngressProxy=true如果想删除标签，可以使用 "kubectl label nodes k8s-node2 IngressProxy-" 命令
安装 Kubernetes Gateway CRD 资源
本例略
参照:https://doc.traefik.io/traefik/providers/kubernetes-gateway/
Kubernetes 部署 Traefik
下面将用 DaemonSet 方式部署 Traefik，便于在多服务器间扩展，用 hostport 方式绑定服务器 80、443 端口，方便流量通过物理机进入 Kubernetes 内部。
---
# Source: traefik/templates/dashboard-hook-ingressroute.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: traefik-dashboard
namespace: ingress-traefik
labels:
app.kubernetes.io/name: traefik
app.kubernetes.io/instance: traefik
spec:
entryPoints:
- traefik
routes:
- match: PathPrefix(`/dashboard`) || PathPrefix(`/api`)
kind: Rule
services:
- name: api@internal
kind: TraefikService
MANIFEST:
---
您暂时无权查看此隐藏内容！

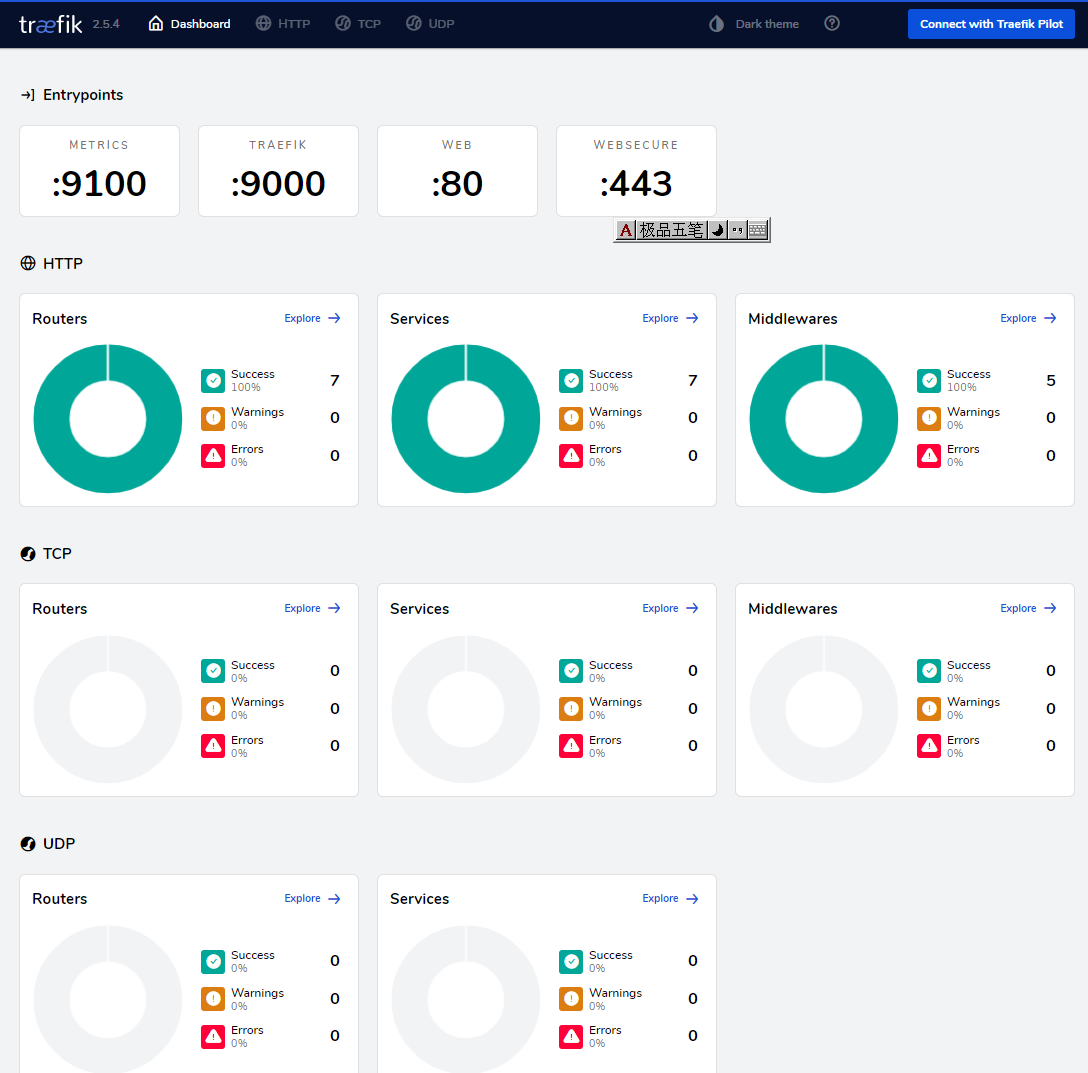

至此部署完成
简单使用示例
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: kubernetes-dashboard-route
namespace: kubernetes-dashboard
spec:
entryPoints:
- websecure
tls:
secretName: uzgood-tls
routes:
- match: Host(`k8s.uzigood.tech`)
kind: Rule
services:
- name: kubernetes-dashboard
port: 443
namespace: kubernetes-dashboard
middlewares:
- name: flask-k8s-traffic
- name: flask-k8s-1
---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: traefik-dashboard-route1
namespace: kubernetes-dashboard
spec:
entryPoints:
- web
routes:
- match: Host(`k8s.uzigood.tech`)
kind: Rule
middlewares:
- name: test-redirectscheme
services:
- name: kubernetes-dashboard
port: 443
namespace: kubernetes-dashboard关于证书管理，注意文件名称
kubectl create secret generic uzgood-tls --from-file=tls.crt --from-file=tls.key -n ingress-traefik关于限流熔断跳转和中间件
Traefik Middlewares 是一个处于路由和后端服务之前的中间件，在外部流量进入 Traefik，且路由规则匹配成功后，将流量发送到对应的后端服务前，先将其发给中间件进行一些列处理（类似于过滤器链 Filter，进行一系列处理），例如，添加 Header 头信息、鉴权、流量转发、处理访问路径前缀、IP 白名单等等，经过一个或者多个中间件处理完成后，再发送给后端服务，这个就是中间件的作用。
# 断路器
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
您暂时无权查看此隐藏内容！circuitBreaker(熔断)三个触发器:
- The network error ratio (
NetworkErrorRatio) - The status code ratio (
ResponseCodeRatio) - The latency at quantile, in milliseconds (
LatencyAtQuantileMS）
NetworkErrorRatio
如果您希望断路器以 30% 的网络错误比率触发，则表示方式将是NetworkErrorRatio() > 0.30
ResponseCodeRatio
您可以根据给定状态代码范围的比例触发断路器。
接受四个参数。 from to dividedByFrom dividedByTo
将要计算的操作是 sum( to-> from) / sum ( dividedByFrom-> dividedByTo)。
如果 sum ( dividedByFrom-> dividedByTo) 等于 0，则ResponseCodeRatio返回 0。
from是包容的，to是排他的。
例如，ResponseCodeRatio(500, 600, 0, 600) > 0.25 如果 25% 的请求返回 5XX 状态（在返回状态代码从 0 到 5XX 的请求中），则表达式将触发断路器。
LatencyAtQuantileMS
当给定比例的请求变得太慢时，您可以触发断路器。
例如，当中位延迟（量级 50）达到 100MS 时，该表示将触发断路器。LatencyAtQuantileMS(50.0) > 100
您必须提供一个浮动号（尾随 .0）的量化值
使用多个指标
您可以使用操作员在表达中组合多个指标。
支持的操作员包括：
和 （&&)
或 （||)
例如，当 30% 的请求返回 5XX 状态代码时，或者当网络错误比率达到 10% 时触发断路器。ResponseCodeRatio(500, 600, 0, 600) > 0.30 || NetworkErrorRatio() > 0.10
VIP学员请参考内部文库
https://docs.ct99.cn/web/#/166?page_id=1398
WEB架构
安全监控体系
集群架构
google搜索资料到，对比哈。
正在学习中 多谢分享
正在学习中 多谢分享
正在学习中 多谢分享
非常感谢分享
