什么是ratelimit
ratelimit是限速的意思，主要作用是限制流量，防止因系统过载而崩溃。istio限速有两大类，一个是本地限速，另一个是全局限速。本地限速是在envoy内部提供一种令牌桶限速的功能，全局限速需要访问外部限速服务。按生效位置分可分为virtualhost级别的限速和route级别的限速。按协议分可分为http的限速和tcp的限速。按服务位置分可分为mesh内部限速和对外部请求的限速。按集群分可分为单集群限速和多集群限速。
配置
extensions.filters.http.ratelimit.v3.RateLimit：
{
"domain": "...",对应ratelimit配置文件中的域名
"stage": "...",stage配置和action中的stage必须匹配，默认0
"request_type": "...", internal, external or both默认both
"timeout": "{...}",ratelimit服务请求的超时时间，默认20ms
"failure_mode_deny": "...",如果ratelimit服务请求失败，则返回错误
"rate_limited_as_resource_exhausted": "...",RESOURCE_EXHAUSTED code代替UNAVAILABLE code
"rate_limit_service": "{...}",指定外部限速服务
"enable_x_ratelimit_headers": "...",定义ratelimit头版本
"disable_x_envoy_ratelimited_header": "..."禁用x-envoy-ratelimited头
}rate_limit_service：
{
"grpc_service": "{...}",配置ratelimit服务
"transport_api_version": "..."版本
}grpc_service：
{
"envoy_grpc": "{...}",envoy grpc客户端
"google_grpc": "{...}",google grpc客户端
"timeout": "{...}",grpc请求超时时间
"initial_metadata": []额外的元数据信息
}envoy_grpc：
{
"cluster_name": "...",集群名称
"authority": "..." :authority头的值，默认cluster_name
}google_grpc：
{
"target_uri": "...",目标uri
"channel_credentials": "{...}",秘钥
"call_credentials": [],调用秘钥
"stat_prefix": "...",stat前缀
"credentials_factory_name": "...",秘钥工厂名称
"config": "{...}",额外配置
"per_stream_buffer_limit_bytes": "{...}",每个流的缓存限值，默认1MiB
"channel_args": "{...}"通道参数
}transport_api_version：
xDS API and non-xDS services version. This is used to describe both resource and transport protocol versions (in distinct configuration fields).
AUTO
(DEFAULT) When not specified, we assume v2, to ease migration to Envoy’s stable API versioning. If a client does not support v2 (e.g. due to deprecation), this is an invalid value.
V2
Use xDS v2 API.
V3
Use xDS v3 API.
enable_x_ratelimit_headers：
Defines the version of the standard to use for X-RateLimit headers.
OFF
(DEFAULT) X-RateLimit headers disabled.
DRAFT_VERSION_03
Use draft RFC Version 03.
extensions.filters.network.local_ratelimit.v3.LocalRateLimit
{
"stat_prefix": "...",stat前缀
"token_bucket": "{...}",令牌桶规则
"runtime_enabled": "{...}"启用百分比
}token_bucket：
{
"max_tokens": "...",最大令牌数
"tokens_per_fill": "{...}",每次填充的令牌数
"fill_interval": "{...}"填充间隔
}runtime_enabled：
{
"default_value": "{...}",百分比
"runtime_key": "..."运行时key
}config.route.v3.RateLimit
{
"stage": "{...}",阶段号，必须和ratelimit过滤器匹配
"disable_key": "...",禁用的key
"actions": [],动作
"limit": "{...}"动态元数据
}actions：
{
"source_cluster": "{...}",源集群动作
"destination_cluster": "{...}",目标集群动作
"request_headers": "{...}",请求头动作
"remote_address": "{...}",远程地址动作
"generic_key": "{...}",通用key动作
"header_value_match": "{...}",头匹配动作
"dynamic_metadata": "{...}",动态元数据动作
"metadata": "{...}",元数据动作
"extension": "{...}"扩展动作
}limit：
{
"dynamic_metadata": "{...}"动态元数据
}extensions.filters.network.ratelimit.v3.RateLimit
{
"stat_prefix": "...",
"domain": "...",
"descriptors": [],
"timeout": "{...}",
"failure_mode_deny": "...",
"rate_limit_service": "{...}"
}实战
http
单集群
集群内服务限流
本地限流
cat <<EOF > envoyfilter-local-rate-limit.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: http_local_rate_limiter
token_bucket:
max_tokens: 10
tokens_per_fill: 10
fill_interval: 60s
filter_enabled:
runtime_key: local_rate_limit_enabled
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
runtime_key: local_rate_limit_enforced
default_value:
numerator: 100
denominator: HUNDRED
response_headers_to_add:
- append: false
header:
key: x-local-rate-limit
value: 'true'
EOF
kubectl apply -f envoyfilter-local-rate-limit.yaml -n istio说明：本地限流需要通过EnvoyFilter来实现，他不会请求外部服务，在envoy内部实现支持，是一个令牌桶的算法。http filter的名称必须是envoy.filters.http.local_ratelimit，type和typeurl是固定的，stat_prefix可以随便改，表示生成stat的指标前缀。token_bucket配置令牌桶，max_tokens表示最大令牌数量，tokens_per_fill表示每次填充的令牌数量，fill_interval表示填充令牌的间隔。filter_enabled表示启用但不是强制，filter_enforced表示强制，可以配置百分比。response_headers_to_add修改响应头信息，append为false表示修改，true表示添加。runtime_key 运行时的key，具体有啥用不清楚。
执行压测：
[root@node01 45]# go-stress-testing -c 10 -n 10000 -u http://192.168.229.134:30945/productpage
开始启动 并发数:10 请求数:10000 请求参数:
request:
form:http
url:http://192.168.229.134:30945/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 7│ 2│ 761│ 2.94│ 124.68│ 1.98│ 3406.97│ 21,476│ 21,470│200:2;429:761
2s│ 10│ 5│ 1636│ 2.55│ 1788.46│ 1.98│ 3928.11│ 52,771│ 26,383│200:5;429:1636
3s│ 10│ 5│ 2962│ 1.70│ 1788.46│ 1.04│ 5871.68│ 76,639│ 25,545│200:5;429:2962
4s│ 10│ 5│ 4459│ 1.28│ 1788.46│ 1.04│ 7810.78│ 103,585│ 25,896│200:5;429:4459429 Too Many Requests (太多请求)
当你需要限制客户端请求某个服务的数量，也就是限制请求速度时，该状态码就会非常有用
清理：
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio全局限流
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: PATH
value: "/productpage"
rate_limit:
unit: minute
requests_per_unit: 1
- key: PATH
rate_limit:
unit: minute
requests_per_unit: 100
EOF
kubectl apply -f ratelimit-config.yaml -n istio说明: 这个configmap是限速服务用到的配置文件，他是envoy v3版本的限速格式。domain是域名，他会在envoyfilter中被引用，descriptors的PATH,表示请求的路径可以有多个值，rate_limit配置限速配额，这里productpage配了1分钟1个请求，其他url是1分钟100个请求
2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio创建了redis，和官方的一个ratelimit服务。
3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio-system
spec:
workloadSelector:
# select by label in the same namespace
labels:
istio: ingressgateway
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio-system这个envoyfilter作用在网关上面，配置了一个http过滤器envoy.filters.http.ratelimit，和一个cluster。http 过滤器的cluster地址指向cluster配置的地址，这里就是我们的ratelimit service所在的地址。domain是上面configmap的值一样，failure_mode_deny表示超过请求限值就拒绝，rate_limit_service配置ratelimit服务的地址（cluster），这里可以配置grpc类型的也可以配置http类型的。
4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: GATEWAY
routeConfiguration:
vhost:
name: "*:80"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions: # any actions in here
- request_headers:
header_name: ":path"
descriptor_key: "PATH"
EOF
kubectl apply -f envoyfilter-action.yaml -n istio-system这个envoyfilter作用在入口网关处，给80端口的虚拟主机配置了一个rate_limits 动作，descriptor_key用于选择在configmap里配置的key。
压测：
[root@node01 ~]# go-stress-testing -c 10 -n 10000 -u http://192.168.229.134:30945/productpage
开始启动 并发数:10 请求数:10000 请求参数:
request:
form:http
url:http://192.168.229.134:30945/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 1│ 1051│ 1.01│ 55.51│ 3.70│ 9914.38│ 4,183│ 4,176│200:1;429:1051
2s│ 10│ 1│ 1629│ 0.50│ 55.51│ 3.70│19807.86│ 4,183│ 2,090│200:1;429:1629
3s│ 10│ 1│ 2154│ 0.34│ 55.51│ 3.70│29829.63│ 4,183│ 1,393│200:1;429:2154
4s│ 10│ 1│ 2662│ 0.25│ 55.51│ 3.70│39823.69│ 4,183│ 1,045│200:1;429:2662
5s│ 10│ 1│ 3166│ 0.20│ 58.63│ 3.70│49865.16│ 4,183│ 836│200:1;429:3166清理：
kubectl delete cm ratelimit-config -n istio
kubectl delete -f ratelimit-deploy.yaml -n istio
kubectl delete envoyfilter filter-ratelimit -n istio-system
kubectl delete envoyfilter filter-ratelimit-svc -n istio-system集群外服务限流
本地限流
cat << EOF > se-baidu.yaml
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
name: baidu
spec:
hosts:
- www.baidu.com
ports:
- number: 80
name: http-port
protocol: HTTP
resolution: DNS
EOF
kubectl apply -f se-baidu.yaml -n istio说明，创建了访问百度的service entry
cat <<EOF > envoyfilter-local-rate-limit-http-outside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: ratings
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_OUTBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: http_local_rate_limiter
token_bucket:
max_tokens: 1
tokens_per_fill: 1
fill_interval: 60s
filter_enabled:
runtime_key: local_rate_limit_enabled
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
runtime_key: local_rate_limit_enforced
default_value:
numerator: 100
denominator: HUNDRED
response_headers_to_add:
- append: false
header:
key: x-local-rate-limit
value: 'true'
EOF
kubectl apply -f envoyfilter-local-rate-limit-http-outside.yaml -n istio说明：SIDECAR_OUTBOUND表示对外发出请求起作用。本地限流需要通过EnvoyFilter来实现，他不会请求外部服务，在envoy内部实现支持，是一个令牌桶的算法。http filter的名称必须是envoy.filters.http.local_ratelimit，type和typeurl是固定的，stat_prefix可以随便改，表示生成stat的指标前缀。token_bucket配置令牌桶，max_tokens表示最大令牌数量，tokens_per_fill表示每次填充的令牌数量，fill_interval表示填充令牌的间隔。filter_enabled表示启用但不是强制，filter_enforced表示强制，可以配置百分比。response_headers_to_add修改响应头信息，append为false表示修改，true表示添加。runtime_key 运行时的key，具体有啥用不清楚。
kubectl exec -it -n istio ratings-v2-mysql-vm-66dc56449d-lk6gv /bin/bash
local_rate_limitednode@ratings-v2-mysql-vm-66dc56449d-lk6gv:/opt/microservices$ curl www.baidu.com -I
HTTP/1.1 429 Too Many Requests
x-local-rate-limit: true
content-length: 18
content-type: text/plain
date: Fri, 17 Sep 2021 23:20:13 GMT
server: envoy进入ratings容器，对百度发请求，409错误，说明限流生效
清理：
kubectl delete se baidu -n istio
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio全局限流
部署ratelimit
1创建cm
cat << EOF > ratelimit-config-outside-http.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: PATH
value: "/"
rate_limit:
unit: minute
requests_per_unit: 1
- key: PATH
value: "/aa"
rate_limit:
unit: minute
requests_per_unit: 1
- key: PATH
rate_limit:
unit: minute
requests_per_unit: 100
EOF
kubectl apply -f ratelimit-config-outside-http.yaml -n istio说明: 这个configmap是限速服务用到的配置文件，他是envoy v3版本的限速格式。domain是域名，他会在envoyfilter中被引用，descriptors的PATH,表示请求的路径可以有多个值，rate_limit配置限速配额，这里productpage配了1分钟1个请求，/aa一分钟1个请求，其他url是1分钟100个请求
2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio创建了redis，和官方的一个ratelimit服务。
cat << EOF > se-baidu.yaml
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
name: baidu
spec:
hosts:
- www.baidu.com
ports:
- number: 80
name: http-port
protocol: HTTP
resolution: DNS
EOF
kubectl apply -f se-baidu.yaml -n istio创建访问百度的serviceentry
创建envoy-filter
cat << EOF > envoyfilter-filter-outside-http.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: ratings
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_OUTBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter-outside-http.yaml -n istio这个envoyfilter作用在ratings上面，SIDECAR_OUTBOUND作用的对外流量上面，配置了一个http过滤器envoy.filters.http.ratelimit，和一个cluster。http 过滤器的cluster地址指向cluster配置的地址，这里就是我们的ratelimit service所在的地址。domain是上面configmap的值一样，failure_mode_deny表示超过请求限值就拒绝，rate_limit_service配置ratelimit服务的地址（cluster），这里可以配置grpc类型的也可以配置http类型的。
4创建action envoyfilter
cat << EOF > envoyfilter-action-outside-http.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: ratings
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_OUTBOUND
routeConfiguration:
vhost:
name: "www.baidu.com:80"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions: # any actions in here
- request_headers:
header_name: ":path"
descriptor_key: "PATH"
EOF
kubectl apply -f envoyfilter-action-outside-http.yaml -n istiohost是我们配置的百度的地址（www.baidu.com:80），这个envoyfilter作用在ratings处，给80端口的虚拟主机配置了一个rate_limits 动作，descriptor_key用于选择在configmap里配置的key。
kubectl exec -it -n istio ratings-v2-mysql-vm-66dc56449d-lk6gv /bin/bash
node@ratings-v2-mysql-vm-66dc56449d-lk6gv:/opt/microservices$ curl www.baidu.com/ -I
HTTP/1.1 429 Too Many Requests
x-envoy-ratelimited: true
date: Fri, 17 Sep 2021 23:51:33 GMT
server: envoy
transfer-encoding: chunked进入rating容器，向百度发请求，409错误，说明限流成功
清理：
kubectl delete cm ratelimit-config -n istio
kubectl delete -f ratelimit-deploy.yaml -n istio
kubectl delete envoyfilter filter-ratelimit -n istio
kubectl delete envoyfilter filter-ratelimit-svc -n istio多集群
准备集群
这里多集群安装我们不在展开，不懂得可以看我之前的文章。
集群1
128,129,130
集群2
131,132,133
两个网络联通
128。129.130
route add -net 172.21.1.0 netmask 255.255.255.0 gw 192.168.229.131
route add -net 172.21.2.0 netmask 255.255.255.0 gw 192.168.229.133
route add -net 172.21.0.0 netmask 255.255.255.0 gw 192.168.229.132
route add -net 10.69.0.0 netmask 255.255.0.0 gw 192.168.229.131
131,132，133
route add -net 172.20.0.0 netmask 255.255.255.0 gw 192.168.229.128
route add -net 172.20.1.0 netmask 255.255.255.0 gw 192.168.229.129
route add -net 172.20.2.0 netmask 255.255.255.0 gw 192.168.229.130
route add -net 10.68.0.0 netmask 255.255.0.0 gw 192.168.229.128
cluster1:
生成istio安装operator文件
cat <<EOF > cluster1.yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
profile: demo
values:
global:
meshID: mesh1
multiCluster:
clusterName: cluster1
network: network1
meshConfig:
accessLogFile: /dev/stdout
enableTracing: true
components:
egressGateways:
- name: istio-egressgateway
enabled: true
EOF
生成istio安装operator文件
cat <<EOF > cluster2.yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
profile: demo
values:
global:
meshID: mesh1
multiCluster:
clusterName: cluster2
network: network1
meshConfig:
accessLogFile: /dev/stdout
enableTracing: true
components:
egressGateways:
- name: istio-egressgateway
enabled: true
EOF
把部署文件传到cluster2
scp cluster2.yaml root@192.168.229.131:/root
cluster1:
生成访问apiserver secret
istioctl x create-remote-secret --name=cluster1 --server=https://192.168.229.128:6443 > remote-secret-cluster1.yaml
传输secret到cluster2
scp remote-secret-cluster1.yaml root@192.168.229.131:/root
cluster2
生成访问apiserver secret
istioctl x create-remote-secret --name=cluster2 --server=https://192.168.229.131:6443 > remote-secret-cluster2.yaml
传输secret到cluster2
scp remote-secret-cluster2.yaml root@192.168.229.128:/root
cluster1
应用secret
kubectl apply -f remote-secret-cluster2.yaml
部署集群
istioctl install -f cluster1.yaml
cluster2:
应用secret
kubectl apply -f remote-secret-cluster1.yaml
部署集群
istioctl install -f cluster2.yaml
cluster1:
重启pod
kubectl rollout restart deploy -n istio
kubectl rollout restart deploy -n istio-system
cluster2:
重启pod
kubectl rollout restart deploy -n istio
kubectl rollout restart deploy -n istio-system清理：
cluster1:
kubectl delete secret istio-remote-secret-cluster2 -n istio-system
istioctl x uninstall -f cluster1.yaml
reboot
cluster2:
kubectl delete secret istio-remote-secret-cluster1 -n istio-system
istioctl x uninstall -f cluster2.yaml
reboot集群内本地限流
多集群只演示集群内本地限流其他是一样的
cat <<EOF > envoyfilter-local-rate-limit-multi-http.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: http_local_rate_limiter
token_bucket:
max_tokens: 10
tokens_per_fill: 10
fill_interval: 60s
filter_enabled:
runtime_key: local_rate_limit_enabled
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
runtime_key: local_rate_limit_enforced
default_value:
numerator: 100
denominator: HUNDRED
response_headers_to_add:
- append: false
header:
key: x-local-rate-limit
value: 'true'
EOF
kubectl apply -f envoyfilter-local-rate-limit-multi-http.yaml -n istio说明：本地限流需要通过EnvoyFilter来实现，他不会请求外部服务，在envoy内部实现支持，是一个令牌桶的算法。http filter的名称必须是envoy.filters.http.local_ratelimit，type和typeurl是固定的，stat_prefix可以随便改，表示生成stat的指标前缀。token_bucket配置令牌桶，max_tokens表示最大令牌数量，tokens_per_fill表示每次填充的令牌数量，fill_interval表示填充令牌的间隔。filter_enabled表示启用但不是强制，filter_enforced表示强制，可以配置百分比。response_headers_to_add修改响应头信息，append为false表示修改，true表示添加。runtime_key 运行时的key，具体有啥用不清楚。
开启压测：
[root@node01 45]# go-stress-testing -c 10 -n 10000 -u http://192.168.229.128:30363/productpage
开始启动 并发数:10 请求数:10000 请求参数:
request:
form:http
url:http://192.168.229.128:30363/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 0│ 0│ 0│ 0.00│ 0.00│ 0.00│ 0.00│ │ │
2s│ 7│ 16│ 6│ 15.25│ 1453.38│ 4.56│ 655.73│ 71,950│ 35,974│200:16;429:6
3s│ 7│ 17│ 6│ 14.30│ 1453.38│ 4.56│ 699.44│ 76,133│ 25,376│200:17;429:6
4s│ 10│ 34│ 24│ 14.30│ 3207.96│ 2.71│ 699.46│ 154,262│ 38,559│200:34;429:24
5s│ 10│ 78│ 68│ 16.03│ 3207.96│ 2.71│ 623.67│ 370,054│ 74,009│200:78;429:68
6s│ 10│ 160│ 150│ 26.98│ 3207.96│ 2.71│ 370.66│ 770,420│ 128,402│200:160;429:150
7s│ 10│ 238│ 228│ 34.53│ 3207.96│ 2.71│ 289.60│1,148,994│ 164,131│200:238;429:228发现多集群和单集群的配置是一样，同样生效
tcp
单集群
集群内服务限流
本地限流
部署mysql
cat << EOF > mysql.yaml
apiVersion: v1
kind: Secret
metadata:
name: mysql-credentials
type: Opaque
data:
rootpasswd: cGFzc3dvcmQ=
---
apiVersion: v1
kind: Service
metadata:
name: mysqldb
labels:
app: mysqldb
service: mysqldb
spec:
ports:
- port: 3306
name: tcp
selector:
app: mysqldb
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysqldb-v1
labels:
app: mysqldb
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: mysqldb
version: v1
template:
metadata:
labels:
app: mysqldb
version: v1
spec:
containers:
- name: mysqldb
image: docker.io/istio/examples-bookinfo-mysqldb:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3306
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: mysql-credentials
key: rootpasswd
args: ["--default-authentication-plugin","mysql_native_password"]
volumeMounts:
- name: var-lib-mysql
mountPath: /var/lib/mysql
volumes:
- name: var-lib-mysql
emptyDir: {}
EOF
kubectl apply -f mysql.yaml -n istio说明：部署了mysql服务，ratings获取数据时会请求这个服务
部署mysql版ratings
cat << EOF > ratings-mysql.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v2-mysql
labels:
app: ratings
version: v2-mysql
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v2-mysql
template:
metadata:
labels:
app: ratings
version: v2-mysql
spec:
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
# ratings-v2 will use mongodb as the default db backend.
# if you would like to use mysqldb then you can use this file
# which sets DB_TYPE = 'mysql' and the rest of the parameters shown
# here and also create the # mysqldb service using bookinfo-mysql.yaml
# NOTE: This file is mutually exclusive to bookinfo-ratings-v2.yaml
- name: DB_TYPE
value: "mysql"
- name: MYSQL_DB_HOST
value: mysqldb
- name: MYSQL_DB_PORT
value: "3306"
- name: MYSQL_DB_USER
value: root
- name: MYSQL_DB_PASSWORD
value: password
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
EOF
kubectl apply -f ratings-mysql.yaml -n istio部署了mysql版的ratings，是指了env变量。
cat <<EOF > envoyfilter-local-rate-limit-mysql-inside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: mysqldb
version: v1
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.network.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: tcp_local_rate_limiter
token_bucket:
max_tokens: 1
tokens_per_fill: 1
fill_interval: 60s
runtime_enabled:
runtime_key: tcp_rate_limit_enabled
default_value: true
EOF
kubectl apply -f envoyfilter-local-rate-limit-mysql-inside.yaml -n istio注意这里applyTo的是NETWORK_FILTER，因为mysql是tcp服务，不是http服务，filter的名字是envoy.filters.network.local_ratelimit，type_url也是固定的不要写错。token_bucket配置了访问限速的令牌数量及其填充速度。我们设置的filter在envoy.filters.network.tcp_proxy前面，所以是INSERT_BEFORE。
清理：
kubectl delete -f mysql.yaml -n istio
kubectl delete -f ratings-mysql.yaml -n istio
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio全局限流
部署mysql
wechat/envoyfilter/ratelimit/tcp/inner/global/mysql.yaml
cat << EOF > mysql.yaml
apiVersion: v1
kind: Secret
metadata:
name: mysql-credentials
type: Opaque
data:
rootpasswd: cGFzc3dvcmQ=
---
apiVersion: v1
kind: Service
metadata:
name: mysqldb
labels:
app: mysqldb
service: mysqldb
spec:
ports:
- port: 3306
name: tcp
selector:
app: mysqldb
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysqldb-v1
labels:
app: mysqldb
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: mysqldb
version: v1
template:
metadata:
labels:
app: mysqldb
version: v1
spec:
containers:
- name: mysqldb
image: docker.io/istio/examples-bookinfo-mysqldb:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3306
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: mysql-credentials
key: rootpasswd
args: ["--default-authentication-plugin","mysql_native_password"]
volumeMounts:
- name: var-lib-mysql
mountPath: /var/lib/mysql
volumes:
- name: var-lib-mysql
emptyDir: {}
EOF
kubectl apply -f mysql.yaml -n istio部署mysql版ratings
cat << EOF > ratings-mysql.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v2-mysql
labels:
app: ratings
version: v2-mysql
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v2-mysql
template:
metadata:
labels:
app: ratings
version: v2-mysql
spec:
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
# ratings-v2 will use mongodb as the default db backend.
# if you would like to use mysqldb then you can use this file
# which sets DB_TYPE = 'mysql' and the rest of the parameters shown
# here and also create the # mysqldb service using bookinfo-mysql.yaml
# NOTE: This file is mutually exclusive to bookinfo-ratings-v2.yaml
- name: DB_TYPE
value: "mysql"
- name: MYSQL_DB_HOST
value: mysqldb
- name: MYSQL_DB_PORT
value: "3306"
- name: MYSQL_DB_USER
value: root
- name: MYSQL_DB_PASSWORD
value: password
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
EOF
kubectl apply -f ratings-mysql.yaml -n istio部署ratelimit
1创建cm
cat << EOF > ratelimit-config-mysql-inside.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: mysql-ratelimit
descriptors:
- key: test
value: "test"
rate_limit:
unit: minute
requests_per_unit: 1
- key: test
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config-mysql-inside.yaml -n istio说明: 这个configmap是限速服务用到的配置文件，他是envoy v3版本的限速格式。domain是域名，他会在envoyfilter中被引用，descriptors的PATH,表示请求的路径可以有多个值，rate_limit配置限速配额，这里productpage配了1分钟1个请求，其他url是1分钟100个请求
2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio创建了redis，和官方的一个ratelimit服务。
3创建envoy-filter
cat << EOF > envoyfilter-filter-mysql-inside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
labels:
app: mysqldb
version: v1
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.ratelimit.v3.RateLimit
domain: mysql-ratelimit
failure_mode_deny: true
stat_prefix: mysql_ratelimit
descriptors:
- entries:
- key: test
value: test
limit:
requests_per_unit: 2
unit: MINUTE
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter-mysql-inside.yaml -n istio
node@ratings-v2-mysql-565f8fd887-8hp9s:/opt/microservices$ curl ratings.istio.svc:9080/ratings/0
{"id":0,"ratings":{"Reviewer1":5,"Reviewer2":4}}node@ratings-v2-mysql-565f8fd887-8hp9s:/opt/microservices$ curl ratings.istio.svc:9080/ratings/0

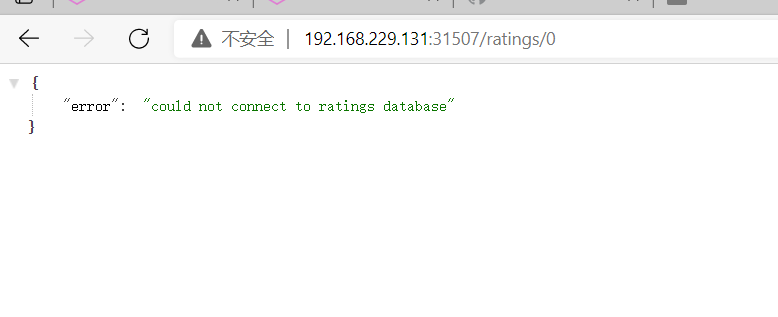

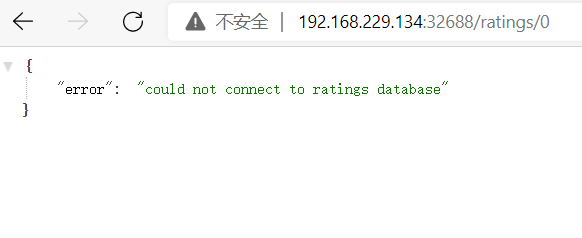

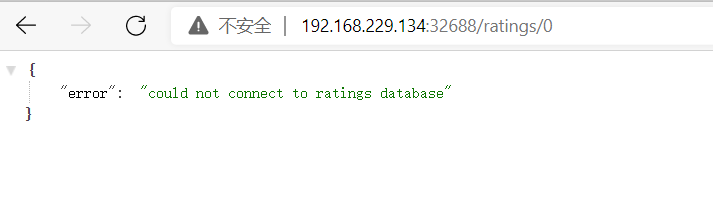

{"error":"could not connect to ratings database"}node@ratings-v2-mysql-565f8fd887-8hp9s:/opt/microservices$ curl ratings.istio.svc:9080/ratings/0
{"error":"could not connect to ratings database"}node@ratings-v2-mysql-565f8fd887-8hp9s:/opt/microservices$清理：
kubectl delete -f mysql.yaml -n istio
kubectl delete -f ratings-mysql.yaml -n istio
kubectl delete -f envoyfilter-filter-mysql-inside.yaml -n istio
kubectl delete -f ratelimit-deploy.yaml -n istio
kubectl delete -f ratelimit-config-mysql-inside.yaml -n istio集群外服务限流
本地限流
部署rating-v2
cat << EOF > bookinfo-ratings-v2-mysql-vm.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v2-mysql-vm
labels:
app: ratings
version: v2-mysql-vm
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v2-mysql-vm
template:
metadata:
labels:
app: ratings
version: v2-mysql-vm
spec:
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
# This assumes you registered your mysql vm as
# istioctl register -n vm mysqldb 1.2.3.4 3306
- name: DB_TYPE
value: "mysql"
- name: MYSQL_DB_HOST
value: mysql.vm.demo
- name: MYSQL_DB_PORT
value: "3306"
- name: MYSQL_DB_USER
value: root
- name: MYSQL_DB_PASSWORD
value: root
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
EOF
kubectl apply -f bookinfo-ratings-v2-mysql-vm.yaml -n istio在vm上部署mysql，这个略过，有需要文档的同学，可以加我微信，因为有点复杂
创建serviceentry
cat << EOF > se-mysql.yaml
apiVersion: networking.istio.io/v1beta1
kind: ServiceEntry
metadata:
name: mysql-se
spec:
hosts:
- mysql.vm.demo
addresses:
- 192.168.229.12
location: MESH_INTERNAL
ports:
- number: 3306
name: mysql
protocol: TCP
targetPort: 3306
resolution: STATIC
workloadSelector:
labels:
app: mysql
type: vm
EOF
kubectl apply -f se-mysql.yaml -n vm这里创建了一个访问我们部署的虚拟机服务mysql的serviceentry
coredns配置加上解析记录
apiVersion: v1
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
hosts {
192.168.229.11 httpd.vm.demo
192.168.229.12 mysql.vm.demo
fallthrough
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
pods insecure
fallthrough in-addr.arpa ip6.arpa
ttl 30
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
reload
loadbalance
}
kind: ConfigMap添加192.168.229.12 mysql.vm.demo这一段
重启coredns
kubectl rollout restart -n kube-system deployment coredns执行压测
go-stress-testing -c 1 -n 10000 -u http://192.168.229.134:32688/productpage
[root@node01 ~]# go-stress-testing -c 1 -n 10000 -u http://192.168.229.134:32688/productpage
开始启动 并发数:1 请求数:10000 请求参数:
request:
form:http
url:http://192.168.229.134:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 1│ 18│ 0│ 18.20│ 91.36│ 17.66│ 54.94│ 87,270│ 87,264│200:18
2s│ 1│ 37│ 0│ 19.11│ 91.40│ 13.13│ 52.34│ 178,723│ 89,351│200:37
3s│ 1│ 54│ 0│ 18.42│ 97.80│ 13.13│ 54.30│ 260,814│ 86,928│200:54
4s│ 1│ 72│ 0│ 18.22│ 97.80│ 13.13│ 54.88│ 349,080│ 87,258│200:72
5s│ 1│ 90│ 0│ 18.17│ 103.04│ 12.98│ 55.04│ 436,350│ 87,264│200:90
6s│ 1│ 111│ 0│ 18.59│ 103.04│ 12.98│ 53.80│ 538,165│ 89,686│200:111
7s│ 1│ 132│ 0│ 18.91│ 103.04│ 12.98│ 52.89│ 638,984│ 91,279│200:132
8s│ 1│ 150│ 0│ 18.88│ 103.04│ 12.30│ 52.95│ 727,250│ 90,905│200:150没有限流之前压测都是200的返回结果
cat <<EOF > envoyfilter-local-rate-limit-mysql-vm-outside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: ratings
configPatches:
- applyTo: NETWORK_FILTER
match:
context: SIDECAR_OUTBOUND
listener:
portNumber: 3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.network.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: tcp_local_rate_limiter
token_bucket:
max_tokens: 10
tokens_per_fill: 10
fill_interval: 60s
runtime_enabled:
runtime_key: tcp_rate_limit_enabled
default_value: true
EOF
kubectl apply -f envoyfilter-local-rate-limit-mysql-vm-outside.yaml -n istio部署envoyfilter使限流生效，作用在ratings服务上面，而且是出口流量SIDECAR_OUTBOUND，network filter名称必须是envoy.filters.network.local_ratelimit，type _url也是固定的。token_bucket设置令牌桶。
这里无法连接数据库，说明数据库被限流了，ratings无法连接vm mysql服务。
清理：
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio
kubectl delete se mysql-se -n vm全局限流
部署rating-v2
cat << EOF > bookinfo-ratings-v2-mysql-vm.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v2-mysql-vm
labels:
app: ratings
version: v2-mysql-vm
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v2-mysql-vm
template:
metadata:
labels:
app: ratings
version: v2-mysql-vm
spec:
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
# This assumes you registered your mysql vm as
# istioctl register -n vm mysqldb 1.2.3.4 3306
- name: DB_TYPE
value: "mysql"
- name: MYSQL_DB_HOST
value: mysql.vm.demo
- name: MYSQL_DB_PORT
value: "3306"
- name: MYSQL_DB_USER
value: root
- name: MYSQL_DB_PASSWORD
value: root
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
EOF
kubectl apply -f bookinfo-ratings-v2-mysql-vm.yaml -n istio在vm上部署mysql，这个略过，有需要文档的同学，可以加我微信，因为有点复杂
创建serviceentry
cat << EOF > se-mysql.yaml
apiVersion: networking.istio.io/v1beta1
kind: ServiceEntry
metadata:
name: mysql-se
spec:
hosts:
- mysql.vm.demo
addresses:
- 192.168.229.12
location: MESH_INTERNAL
ports:
- number: 3306
name: mysql
protocol: TCP
targetPort: 3306
resolution: STATIC
workloadSelector:
labels:
app: mysql
type: vm
EOF
kubectl apply -f se-mysql.yaml -n vm这里创建了一个访问我们部署的虚拟机服务mysql的serviceentry
coredns配置加上解析记录
apiVersion: v1
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
hosts {
192.168.229.11 httpd.vm.demo
192.168.229.12 mysql.vm.demo
fallthrough
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
pods insecure
fallthrough in-addr.arpa ip6.arpa
ttl 30
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
reload
loadbalance
}
kind: ConfigMap添加192.168.229.12 mysql.vm.demo这一段
重启coredns
kubectl rollout restart -n kube-system deployment coredns执行压测
go-stress-testing -c 1 -n 10000 -u http://192.168.229.134:32688/productpage
[root@node01 ~]# go-stress-testing -c 1 -n 10000 -u http://192.168.229.134:32688/productpage
开始启动 并发数:1 请求数:10000 请求参数:
request:
form:http
url:http://192.168.229.134:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 1│ 18│ 0│ 18.20│ 91.36│ 17.66│ 54.94│ 87,270│ 87,264│200:18
2s│ 1│ 37│ 0│ 19.11│ 91.40│ 13.13│ 52.34│ 178,723│ 89,351│200:37
3s│ 1│ 54│ 0│ 18.42│ 97.80│ 13.13│ 54.30│ 260,814│ 86,928│200:54
4s│ 1│ 72│ 0│ 18.22│ 97.80│ 13.13│ 54.88│ 349,080│ 87,258│200:72
5s│ 1│ 90│ 0│ 18.17│ 103.04│ 12.98│ 55.04│ 436,350│ 87,264│200:90
6s│ 1│ 111│ 0│ 18.59│ 103.04│ 12.98│ 53.80│ 538,165│ 89,686│200:111
7s│ 1│ 132│ 0│ 18.91│ 103.04│ 12.98│ 52.89│ 638,984│ 91,279│200:132
8s│ 1│ 150│ 0│ 18.88│ 103.04│ 12.30│ 52.95│ 727,250│ 90,905│200:150没有限流之前压测都是200的返回结果
cat << EOF > envoyfilter-filter-mysql-outside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
labels:
app: ratings
configPatches:
- applyTo: NETWORK_FILTER
match:
context: SIDECAR_OUTBOUND
listener:
portNumber: 3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.ratelimit.v3.RateLimit
domain: mysql-ratelimit
failure_mode_deny: true
stat_prefix: mysql_ratelimit
descriptors:
- entries:
- key: test
value: test
limit:
requests_per_unit: 2
unit: MINUTE
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter-mysql-outside.yaml -n istio清理
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio
kubectl delete se mysql-se -n vm多集群
集群准备
同上
集群内本地限流
cluster1,cluster2部署mysql
cat << EOF > mysql.yaml
apiVersion: v1
kind: Secret
metadata:
name: mysql-credentials
type: Opaque
data:
rootpasswd: cGFzc3dvcmQ=
---
apiVersion: v1
kind: Service
metadata:
name: mysqldb
labels:
app: mysqldb
service: mysqldb
spec:
ports:
- port: 3306
name: tcp
selector:
app: mysqldb
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysqldb-v1
labels:
app: mysqldb
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: mysqldb
version: v1
template:
metadata:
labels:
app: mysqldb
version: v1
spec:
containers:
- name: mysqldb
image: docker.io/istio/examples-bookinfo-mysqldb:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3306
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: mysql-credentials
key: rootpasswd
args: ["--default-authentication-plugin","mysql_native_password"]
volumeMounts:
- name: var-lib-mysql
mountPath: /var/lib/mysql
volumes:
- name: var-lib-mysql
emptyDir: {}
EOF
kubectl apply -f mysql.yaml -n istio说明：部署了mysql服务，ratings获取数据时会请求这个服务
cluster1,cluster2部署mysql版ratings
cat << EOF > ratings-mysql.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v2-mysql
labels:
app: ratings
version: v2-mysql
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v2-mysql
template:
metadata:
labels:
app: ratings
version: v2-mysql
spec:
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
# ratings-v2 will use mongodb as the default db backend.
# if you would like to use mysqldb then you can use this file
# which sets DB_TYPE = 'mysql' and the rest of the parameters shown
# here and also create the # mysqldb service using bookinfo-mysql.yaml
# NOTE: This file is mutually exclusive to bookinfo-ratings-v2.yaml
- name: DB_TYPE
value: "mysql"
- name: MYSQL_DB_HOST
value: mysqldb
- name: MYSQL_DB_PORT
value: "3306"
- name: MYSQL_DB_USER
value: root
- name: MYSQL_DB_PASSWORD
value: password
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
EOF
kubectl apply -f ratings-mysql.yaml -n istio部署了mysql版的ratings，是指了env变量。
cat <<EOF > envoyfilter-local-rate-limit-mysql-inside.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
spec:
workloadSelector:
labels:
app: mysqldb
version: v1
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.network.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: tcp_local_rate_limiter
token_bucket:
max_tokens: 1
tokens_per_fill: 1
fill_interval: 60s
runtime_enabled:
runtime_key: tcp_rate_limit_enabled
default_value: true
EOF
cluster1，cluster2：
kubectl apply -f envoyfilter-local-rate-limit-mysql-inside.yaml -n istio注意这里applyTo的是NETWORK_FILTER，因为mysql是tcp服务，不是http服务，filter的名字是envoy.filters.network.local_ratelimit，type_url也是固定的不要写错。token_bucket配置了访问限速的令牌数量及其填充速度。我们设置的filter在envoy.filters.network.tcp_proxy前面，所以是INSERT_BEFORE。
多集群集群内本地限流，需要在每个istiod里面增加ratelimit配置
清理：
kubectl delete envoyfilter filter-local-ratelimit-svc -n istio不同限流动作
source_cluster
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: source_cluster
value: "outbound|80||istio-ingressgateway.istio-system.svc.cluster.local"
rate_limit:
unit: minute
requests_per_unit: 1
- key: source_cluster
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- source_cluster: {}
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 10│ 741│ 10.06│ 164.41│ 5.07│ 994.21│ 48,814│ 48,793│200:10;429:739;500:2
2s│ 10│ 10│ 1644│ 5.02│ 164.41│ 5.07│ 1992.68│ 48,814│ 24,403│200:10;429:1642;500:2
3s│ 10│ 10│ 2486│ 3.34│ 164.41│ 4.99│ 2989.70│ 48,814│ 16,268│200:10;429:2484;500:2
4s│ 10│ 10│ 3332│ 2.51│ 164.41│ 4.94│ 3989.95│ 48,814│ 12,203│200:10;429:3330;500:2
5s│ 10│ 10│ 4213│ 2.00│ 164.41│ 4.61│ 4988.90│ 48,814│ 9,762│200:10;429:4207;500:6destination_cluster
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: destination_cluster
value: "inbound|9080||"
rate_limit:
unit: minute
requests_per_unit: 1
- key: destination_cluster
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- destination_cluster: {}
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 1│ 799│ 1.01│ 38.49│ 5.84│ 9904.46│ 4,183│ 4,182│200:1;429:799
2s│ 10│ 1│ 1703│ 0.50│ 38.49│ 5.31│19918.49│ 4,183│ 2,090│200:1;429:1703
3s│ 10│ 1│ 2553│ 0.33│ 38.49│ 4.88│29894.78│ 4,183│ 1,394│200:1;429:2553
4s│ 10│ 1│ 3452│ 0.25│ 38.49│ 4.88│39907.66│ 4,183│ 1,045│200:1;429:3452
5s│ 10│ 1│ 4339│ 0.20│ 38.49│ 4.26│49863.27│ 4,183│ 836│200:1;429:4339
6s│ 10│ 1│ 5130│ 0.17│ 38.49│ 4.26│59819.79│ 4,183│ 697│200:1;429:5130
7s│ 10│ 1│ 5945│ 0.14│ 38.49│ 4.26│69888.47│ 4,183│ 597│200:1;429:5945
8s│ 10│ 1│ 6773│ 0.13│ 38.49│ 4.26│79848.79│ 4,183│ 522│200:1;429:6772;500:1request_headers
略
remote_address
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: remote_address
value: "172.20.1.0"
rate_limit:
unit: minute
requests_per_unit: 1
- key: remote_address
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- remote_address: {}
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 1│ 825│ 1.01│ 58.24│ 4.89│ 9914.57│ 4,183│ 4,181│200:1;429:825
2s│ 10│ 1│ 1652│ 0.50│ 58.24│ 4.89│19930.21│ 4,183│ 2,091│200:1;429:1652
3s│ 10│ 1│ 2565│ 0.33│ 58.24│ 4.89│29894.37│ 4,183│ 1,394│200:1;429:2565
4s│ 10│ 1│ 3433│ 0.25│ 58.24│ 4.76│39857.25│ 4,183│ 1,045│200:1;429:3433
5s│ 10│ 1│ 4176│ 0.20│ 58.24│ 4.76│49888.21│ 4,183│ 836│200:1;429:4176generic_key
{
"descriptor_value": "...",
"descriptor_key": "..."
}部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: test
value: "test"
rate_limit:
unit: minute
requests_per_unit: 2
- key: test
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- generic_key:
descriptor_key: test
descriptor_value: test
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 789│ 0.00│ 27.99│ 5.37│ 0.00│ │ │429:789
2s│ 10│ 0│ 1624│ 0.00│ 27.99│ 4.61│ 0.00│ │ │429:1624
3s│ 10│ 0│ 2492│ 0.00│ 27.99│ 4.61│ 0.00│ │ │429:2492
4s│ 10│ 0│ 3335│ 0.00│ 27.99│ 4.21│ 0.00│ │ │429:3335
5s│ 10│ 0│ 4181│ 0.00│ 27.99│ 4.21│ 0.00│ │ │429:4181
6s│ 10│ 0│ 5026│ 0.00│ 27.99│ 4.21│ 0.00│ │ │429:5026
7s│ 10│ 0│ 5842│ 0.00│ 27.99│ 4.21│ 0.00│ │ │429:5842
8s│ 10│ 0│ 6721│ 0.00│ 27.99│ 4.21│ 0.00│ │ │429:6721
9s│ 10│ 2│ 7586│ 0.22│ 95.85│ 4.21│44910.75│ 10,362│ 1,151│200:2;429:7586
10s│ 10│ 2│ 8444│ 0.20│ 95.85│ 4.21│49900.13│ 10,362│ 1,036│200:2;429:8441;500:3
11s│ 10│ 2│ 9295│ 0.18│ 95.85│ 4.21│54893.06│ 10,362│ 941│200:2;429:9292;500:3
12s│ 10│ 2│ 10083│ 0.17│ 95.85│ 4.21│59903.03│ 10,362│ 863│200:2;429:10080;500:3
13s│ 10│ 2│ 10889│ 0.15│ 95.85│ 4.21│64892.42│ 10,362│ 797│200:2;429:10886;500:3
14s│ 10│ 2│ 11383│ 0.14│ 95.85│ 4.21│69829.26│ 10,362│ 740│200:2;429:11380;500:3header_value_match
{
"descriptor_value": "...",
"expect_match": "{...}",
"headers": []
}部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: header_match
value: "test"
rate_limit:
unit: minute
requests_per_unit: 3
- key: header_match
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- header_value_match:
descriptor_value: test
expect_match: true
headers:
- name: test
exact_match: test
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage -H "test:test"
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[test:test]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 551│ 0.00│ 46.14│ 4.79│ 0.00│ │ │429:551
2s│ 10│ 0│ 1058│ 0.00│ 46.14│ 4.79│ 0.00│ │ │429:1058
3s│ 10│ 3│ 1505│ 1.01│ 93.00│ 4.79│ 9918.12│ 14,545│ 4,847│200:3;429:1505
4s│ 10│ 3│ 1996│ 0.75│ 93.00│ 4.79│13286.69│ 14,545│ 3,635│200:3;429:1996
5s│ 10│ 3│ 2491│ 0.60│ 93.00│ 4.79│16616.88│ 14,545│ 2,908│200:3;429:2491
6s│ 10│ 3│ 2962│ 0.50│ 93.00│ 4.79│19942.64│ 14,545│ 2,423│200:3;429:2962
7s│ 10│ 3│ 3481│ 0.43│ 93.00│ 4.79│23293.64│ 14,545│ 2,077│200:3;429:3481dynamic_metadata
已废弃
metadata
{
"descriptor_key": "...",
"metadata_key": "{...}",
"default_value": "...",
"source": "..."
}source：
DYNAMIC
(DEFAULT) Query dynamic metadata
ROUTE_ENTRY
Query route entry metadata
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: test
value: "test"
rate_limit:
unit: minute
requests_per_unit: 4
- key: test
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- metadata:
descriptor_key: test
metadata_key:
key: envoy.xxx
path:
- key: prop
- key: foo
default_value: test
source: DYNAMIC
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 852│ 0.00│ 26.01│ 4.44│ 0.00│ │ │429:852
2s│ 10│ 0│ 1766│ 0.00│ 26.04│ 4.44│ 0.00│ │ │429:1766
3s│ 10│ 4│ 2634│ 1.34│ 88.00│ 4.44│ 7470.19│ 18,732│ 6,243│200:4;429:2634
4s│ 10│ 4│ 3507│ 1.00│ 88.00│ 4.44│ 9973.41│ 18,732│ 4,682│200:4;429:3507
5s│ 10│ 4│ 4005│ 0.80│ 88.00│ 4.44│12454.99│ 18,732│ 3,745│200:4;429:4005
6s│ 10│ 4│ 4496│ 0.67│ 88.00│ 4.44│14932.15│ 18,732│ 3,121│200:4;429:44963.3.9extension
extensions.rate_limit_descriptors.expr.v3.Descriptor
{
"descriptor_key": "...",
"skip_if_error": "...",
"text": "...",
"parsed": "{...}"
}部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: test
value: "outbound_.9080_._.productpage.istio.svc.cluster.local"
rate_limit:
unit: minute
requests_per_unit: 4
- key: test
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- extension:
name: envoy.rate_limit_descriptors.expr
typed_config:
"@type": type.googleapis.com/envoy.extensions.rate_limit_descriptors.expr.v3.Descriptor
descriptor_key: test
skip_if_error: true
text: "connection.requested_server_name"
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 850│ 0.00│ 28.69│ 3.87│ 0.00│ │ │429:850
2s│ 10│ 0│ 1688│ 0.00│ 32.26│ 3.87│ 0.00│ │ │429:1688
3s│ 10│ 0│ 2593│ 0.00│ 32.26│ 3.87│ 0.00│ │ │429:2593
4s│ 10│ 4│ 3443│ 1.00│ 97.18│ 3.87│ 9975.97│ 19,724│ 4,930│200:4;429:3440;500:3
5s│ 10│ 4│ 4005│ 0.80│ 97.18│ 3.87│12431.83│ 19,724│ 3,944│200:4;429:4002;500:3
6s│ 10│ 4│ 4464│ 0.67│ 97.18│ 3.87│14930.66│ 19,724│ 3,287│200:4;429:4461;500:3
7s│ 10│ 4│ 4962│ 0.57│ 97.18│ 3.87│17428.69│ 19,724│ 2,817│200:4;429:4959;500:3
8s│ 10│ 4│ 5477│ 0.50│ 97.18│ 3.87│19941.18│ 19,724│ 2,464│200:4;429:5474;500:3按请求类型限流
internal
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: header_match
value: "test"
rate_limit:
unit: minute
requests_per_unit: 3
- key: header_match
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
request_type: internal
timeout: 20ms
rate_limited_as_resource_exhausted: true
enable_x_ratelimit_headers: DRAFT_VERSION_03
disable_x_envoy_ratelimited_header: false
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- header_value_match:
descriptor_value: test
expect_match: true
headers:
- name: test
exact_match: test
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage -H "test:test"
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[test:test]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 402│ 0.00│ 58.08│ 8.42│ 0.00│ │ │429:402
2s│ 10│ 0│ 838│ 0.00│ 58.21│ 7.16│ 0.00│ │ │429:838
3s│ 10│ 0│ 1345│ 0.00│ 58.21│ 7.16│ 0.00│ │ │429:1345
4s│ 10│ 0│ 1813│ 0.00│ 58.21│ 6.42│ 0.00│ │ │429:1813
5s│ 10│ 3│ 2284│ 0.60│ 94.15│ 6.42│16583.06│ 14,545│ 2,908│200:3;429:2284
6s│ 10│ 3│ 2750│ 0.50│ 94.15│ 6.42│19914.90│ 14,545│ 2,424│200:3;429:2750
7s│ 10│ 3│ 3189│ 0.43│ 94.15│ 6.42│23246.60│ 14,545│ 2,077│200:3;429:3189
8s│ 10│ 3│ 3616│ 0.38│ 94.15│ 6.42│26548.82│ 14,545│ 1,817│200:3;429:3616external
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: header_match
value: "test"
rate_limit:
unit: minute
requests_per_unit: 3
- key: header_match
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
request_type: external
timeout: 20ms
rate_limited_as_resource_exhausted: true
enable_x_ratelimit_headers: DRAFT_VERSION_03
disable_x_envoy_ratelimited_header: false
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- header_value_match:
descriptor_value: test
expect_match: true
headers:
- name: test
exact_match: test
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage -H "test:test"
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[test:test]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 94│ 0│ 98.74│ 150.75│ 32.92│ 101.27│ 455,078│ 454,974│200:94
2s│ 10│ 191│ 0│ 97.52│ 189.63│ 32.92│ 102.55│ 925,701│ 462,829│200:191
3s│ 10│ 288│ 0│ 98.58│ 189.63│ 32.92│ 101.44│1,396,320│ 465,432│200:288
4s│ 10│ 390│ 0│ 99.04│ 189.63│ 32.92│ 100.97│1,890,850│ 472,669│200:390因为请求是内部的，所以这里没有ratelimit
both
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: header_match
value: "test"
rate_limit:
unit: minute
requests_per_unit: 3
- key: header_match
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
request_type: both
timeout: 20ms
rate_limited_as_resource_exhausted: true
enable_x_ratelimit_headers: DRAFT_VERSION_03
disable_x_envoy_ratelimited_header: false
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- header_value_match:
descriptor_value: test
expect_match: true
headers:
- name: test
exact_match: test
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage -H "test:test"
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[test:test]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 0│ 832│ 0.00│ 30.45│ 4.18│ 0.00│ │ │429:832
2s│ 10│ 0│ 1621│ 0.00│ 30.45│ 4.18│ 0.00│ │ │429:1621
3s│ 10│ 0│ 2398│ 0.00│ 30.45│ 4.18│ 0.00│ │ │429:2398
4s│ 10│ 0│ 3188│ 0.00│ 30.45│ 3.86│ 0.00│ │ │429:3179;500:9
5s│ 10│ 0│ 4087│ 0.00│ 30.45│ 3.86│ 0.00│ │ │429:4078;500:9
6s│ 10│ 3│ 4961│ 0.50│ 87.15│ 3.86│19948.44│ 14,545│ 2,424│200:3;429:4952;500:9
7s│ 10│ 3│ 5843│ 0.43│ 87.15│ 3.86│23253.71│ 14,545│ 2,077│200:3;429:5834;500:9
8s│ 10│ 3│ 6673│ 0.38│ 87.15│ 3.86│26606.37│ 14,545│ 1,818│200:3;429:6664;500:9stage
部署ratelimit
1创建cm
cat << EOF > ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: remote_address
value: "172.20.1.0"
rate_limit:
unit: minute
requests_per_unit: 1
- key: remote_address
rate_limit:
unit: minute
requests_per_unit: 10
EOF
kubectl apply -f ratelimit-config.yaml -n istio2创建限速服务deployment
cat << EOF > ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
EOF
kubectl apply -f ratelimit-deploy.yaml -n istio3创建envoy-filter
cat << EOF > envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio
spec:
workloadSelector:
# select by label in the same namespace
labels:
app: productpage
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
stage: 1
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
EOF
kubectl apply -f envoyfilter-filter.yaml -n istio4创建action envoyfilter
cat << EOF > envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
vhost:
name: "inbound|http|9080"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions:
- remote_address: {}
stage: 1
disable_key: test
limit:
dynamic_metadata:
metadata_key:
key: envoy.xxx
path:
- key: prop
- key: foo
EOF
kubectl apply -f envoyfilter-action.yaml -n istio[root@node01 ~]# go-stress-testing -n 1000000 -c 10 -u http://192.168.229.135:32688/productpage
开始启动 并发数:10 请求数:1000000 请求参数:
request:
form:http
url:http://192.168.229.135:32688/productpage
method:GET
headers:map[]
data:
verify:statusCode
timeout:30s
debug:false
─────┬───────┬───────┬───────┬────────┬────────┬────────┬────────┬────────┬────────┬────────
耗时│ 并发数│ 成功数│ 失败数│ qps │最长耗时│最短耗时│平均耗时│下载字节│字节每秒│ 错误码
─────┼───────┼───────┼───────┼────────┼────────┼────────┼────────┼────────┼────────┼────────
1s│ 10│ 1│ 835│ 1.01│ 44.86│ 5.45│ 9941.10│ 4,183│ 4,182│200:1;429:815;500:20
2s│ 10│ 1│ 1711│ 0.50│ 44.86│ 4.96│19839.11│ 4,183│ 2,091│200:1;429:1688;500:23
3s│ 10│ 1│ 2465│ 0.33│ 44.86│ 4.96│29876.69│ 4,183│ 1,393│200:1;429:2442;500:23
4s│ 10│ 1│ 3007│ 0.25│ 66.38│ 4.96│39852.79│ 4,183│ 1,045│200:1;429:2984;500:23
5s│ 10│ 1│ 3852│ 0.20│ 66.38│ 4.55│49888.50│ 4,183│ 836│200:1;429:3829;500:23
6s│ 10│ 1│ 4733│ 0.17│ 66.38│ 4.55│59809.06│ 4,183│ 696│200:1;429:4710;500:23
7s│ 10│ 1│ 5581│ 0.14│ 66.38│ 4.55│69770.80│ 4,183│ 597│200:1;429:5558;500:23
8s│ 10│ 1│ 6497│ 0.13│ 66.38│ 4.55│79826.00│ 4,183│ 522│200:1;429:6474;500:23
9s│ 10│ 1│ 7407│ 0.11│ 66.38│ 4.55│89840.05│ 4,183│ 464│200:1;429:7384;500:23
10s│ 10│ 1│ 8271│ 0.10│ 66.38│ 4.55│99801.86│ 4,183│ 418│200:1;429:8248;500:234清理
kubectl delete cm ratelimit-config -n istio
kubectl delete -f ratelimit-deploy.yaml -n istio
kubectl delete envoyfilter filter-ratelimit -n istio
kubectl delete envoyfilter filter-ratelimit-svc -n istio
WEB架构
安全监控体系
集群架构
